All In One Solar Street Lights

Patent LED Street Lights Features
1:All in one patented solar lamp,aluminum body,powder coated painting,anti-rust corrosion;
2:Charging time:5-6H(direct sunshine);Working time:bright mode-14H,Dim mode(30%)-60H;
3:Lamp size:700*540*290mm,light sensor, PIR, time control,microwave control.

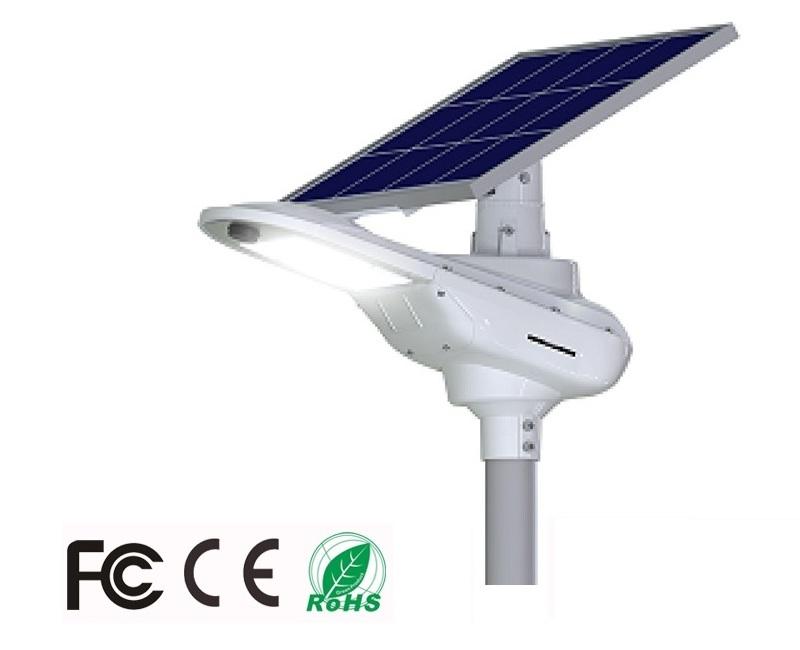

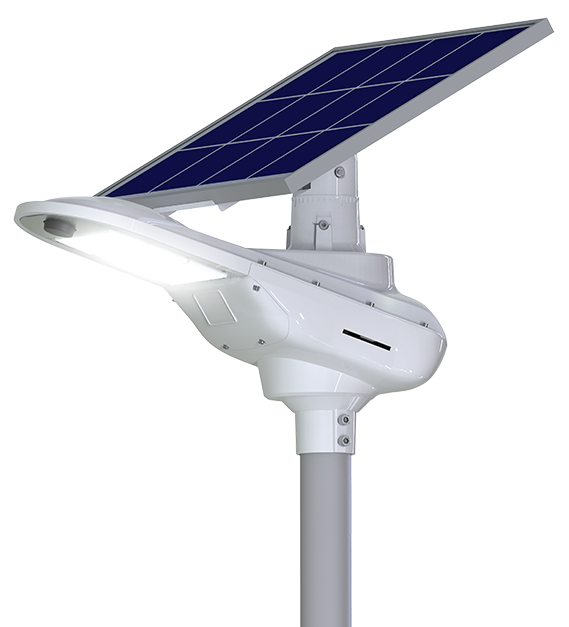

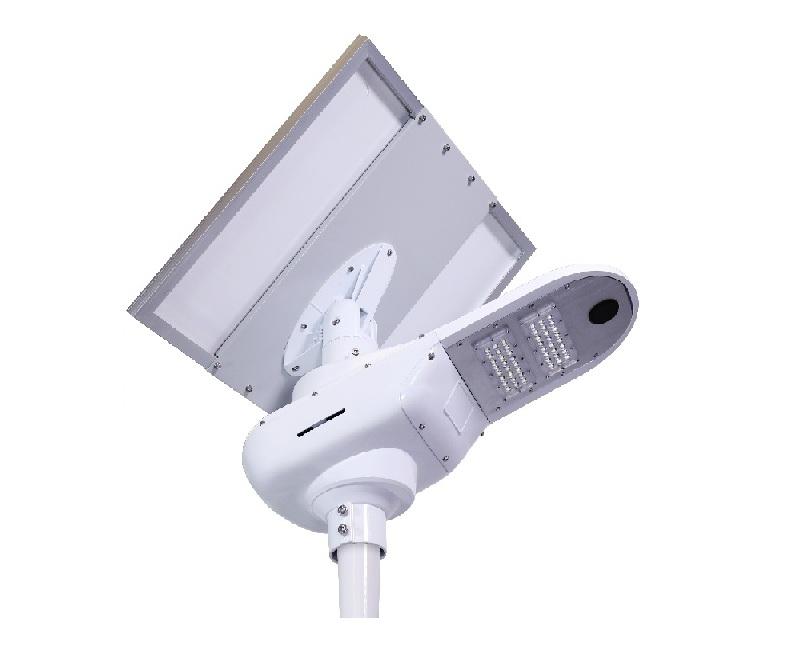

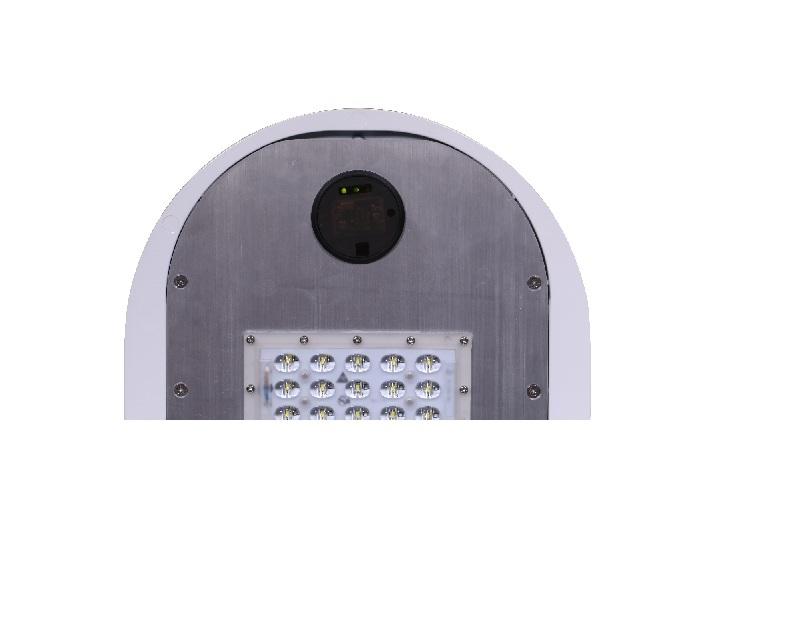

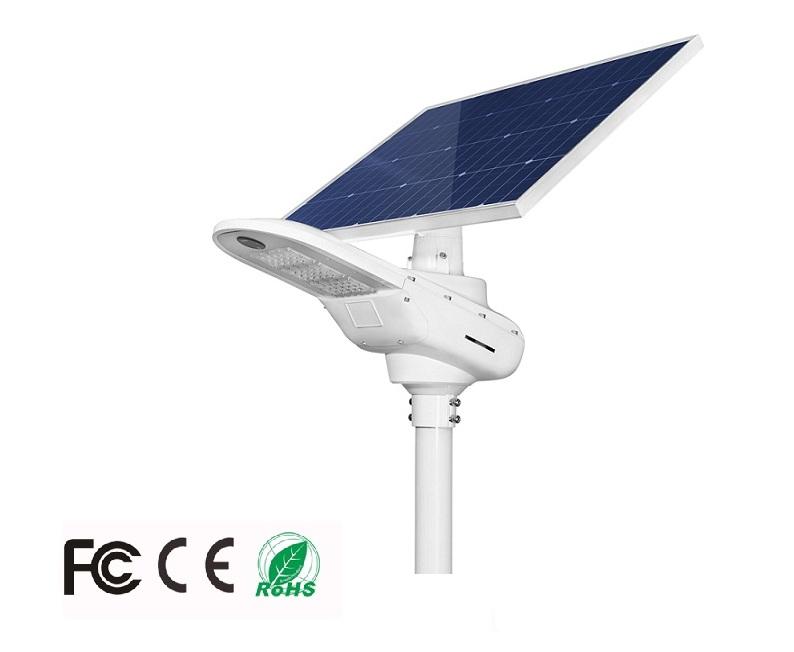

                       Patented Integrated Solar Street Lights

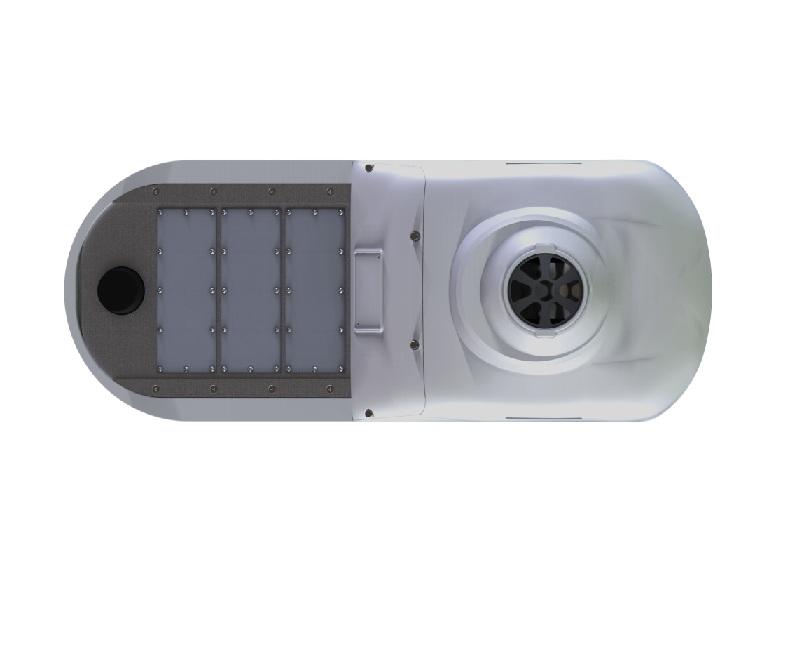

                        Lamp Dimensions











                        Lamp Characteristics

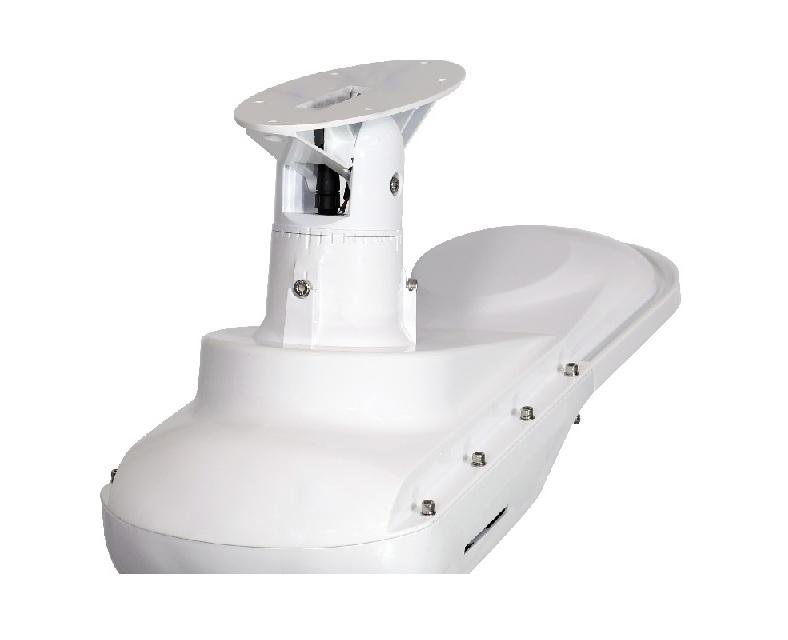

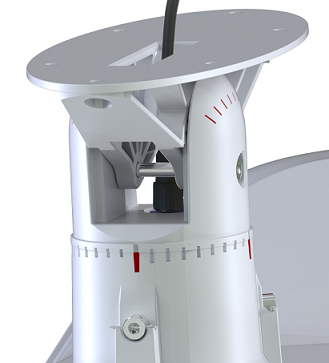

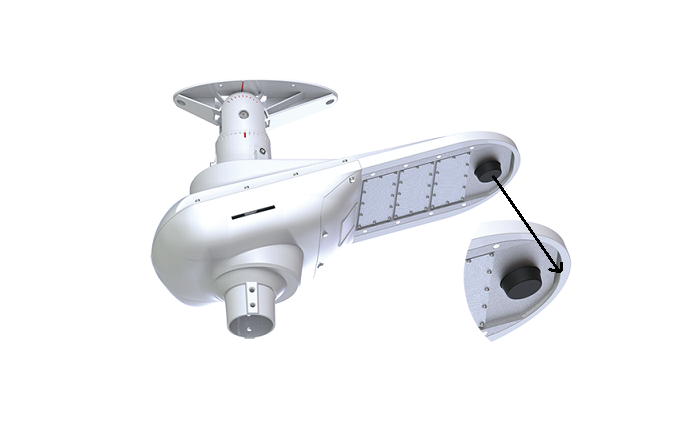

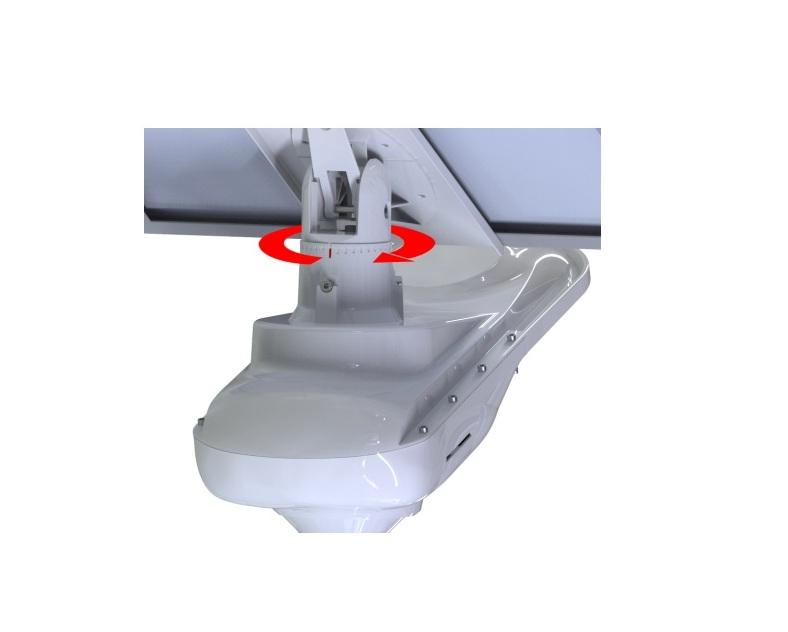

                        Patent Technology Pictues







                        Working Mode Demonstrations


                        DEMO: Test button for demonstration

                        OFF: shut down, do not light all the day or all the night.

                        Working mode:

                        T (Time control+Light control mode): Start from 7:00pm,

                        80%-1hr, 100%-3hrs, 50%-2hrs, 30% till dawn




                        M    (Microwave mode):

                        100% brightness when sense people or things come closer, Remain 20% when far away.

                        TM     (Time control+Microwave control mode):

                        80%-1hr, 100%-2hrs, 50%-2hrs, after 5 hrs, microwave sensor working as follows:

                        50% when people or things come closer, 20% when people or things far away,

                        Remark:Default mode is M, you can choose or customized your preferred mode according to the lighting condition in your projects.




                       GPRS/Wifi Wireless Intelligent Control System


                       The street light control system adopts 4G,GPRS wireless technology to control and monitor each lamp's turn on/turn off,dimming control,

                       solar panel and battery's warning message,alarm for wire anomaly and failure,collect data and sent back lamp's running status.



                       Through the GPRS network,control center and database, we are able to check each lamp's historical and real time performance and operating the

                       brightness of the specific solar lamp.

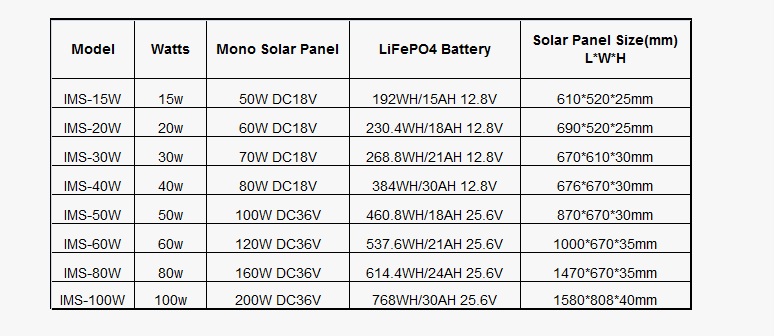

             Parameters




* If it is stored for a long time, the product should be recharged once every 3 months to avoid damage to the lithium battery. Please only use the special charger (purchased from manufacturer) to avoid damage to the battery or device.
