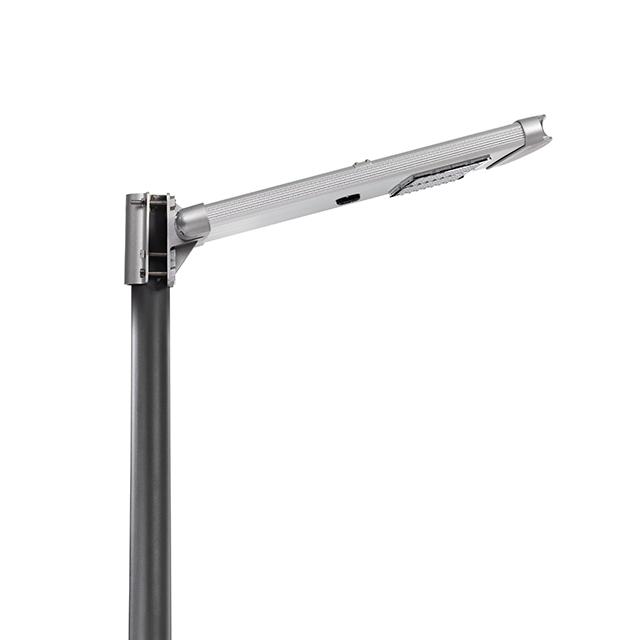

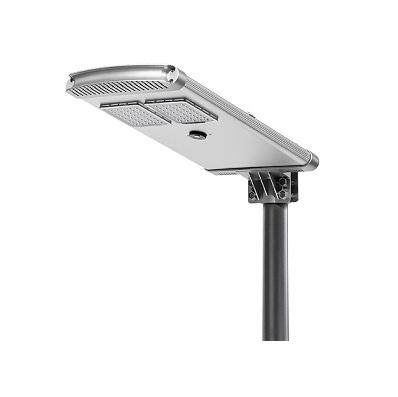

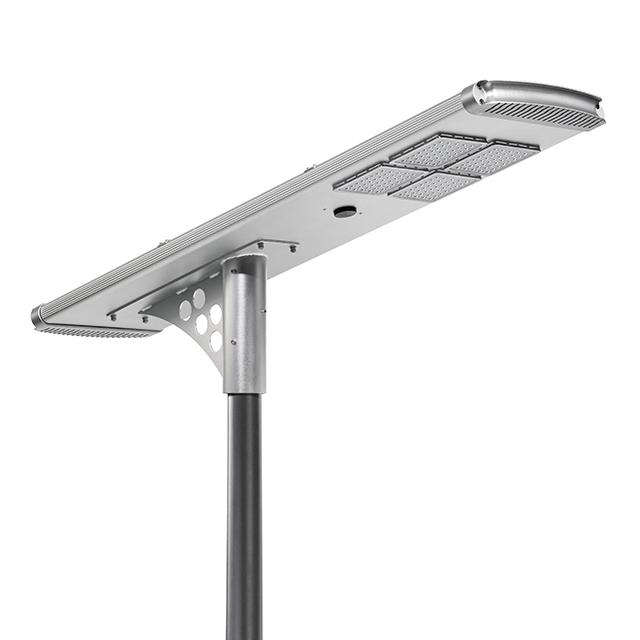

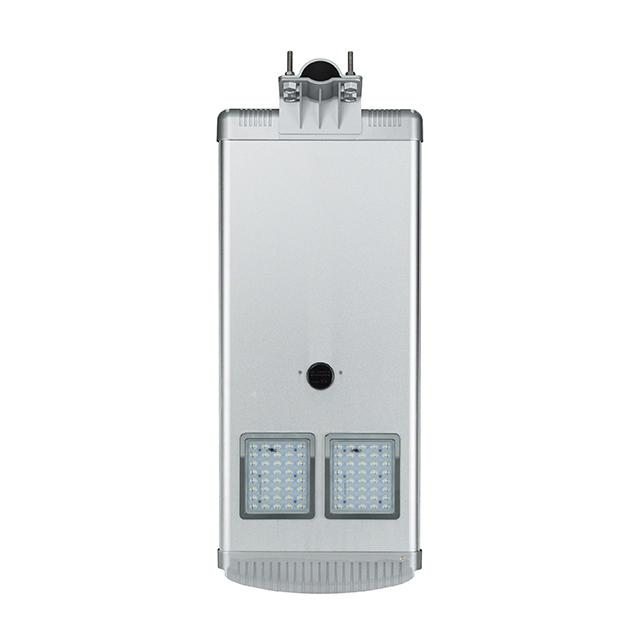

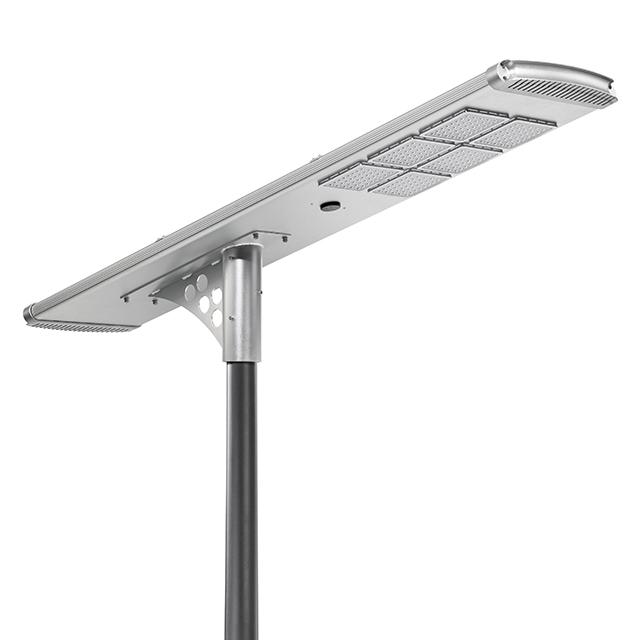

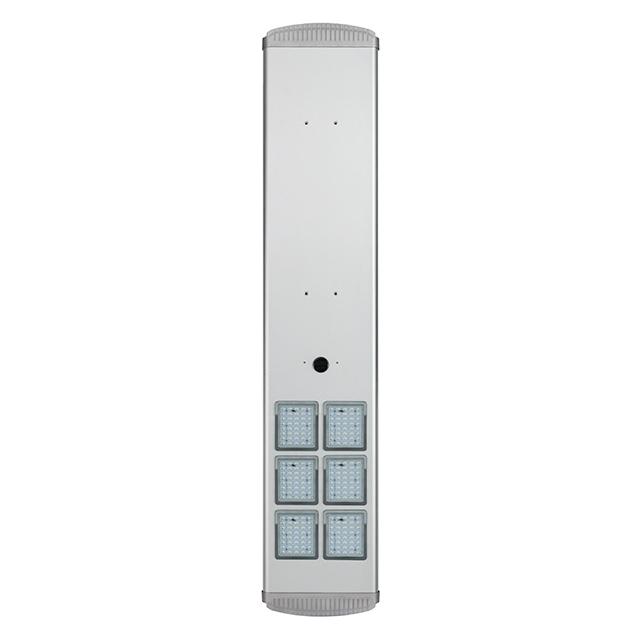

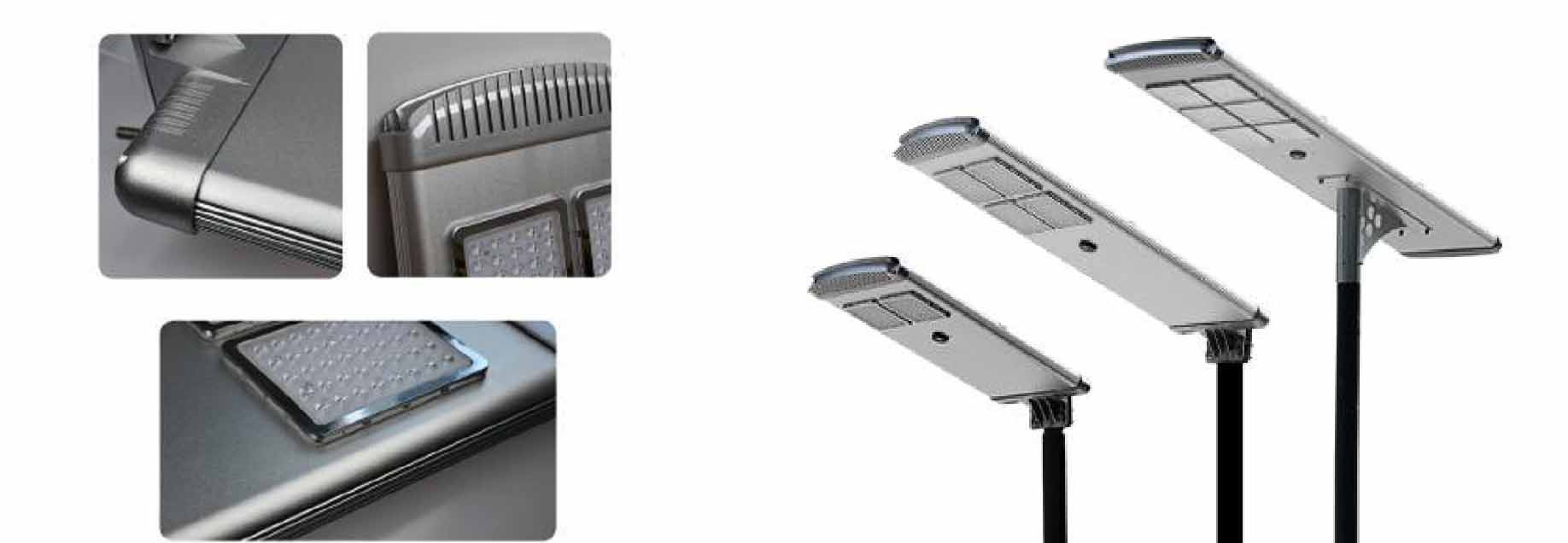

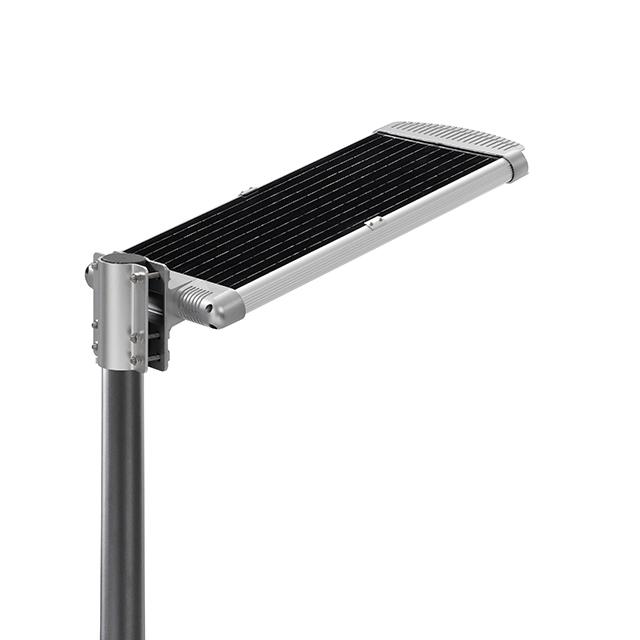

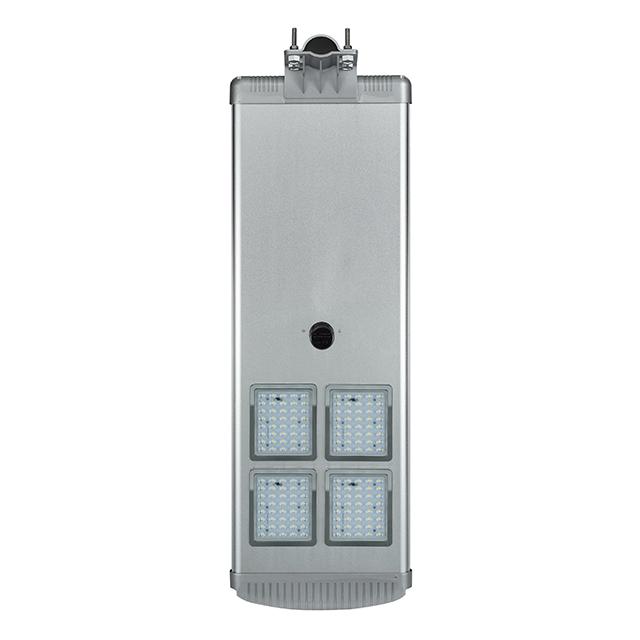

- IM-P Series All In One (AIO) Solar Light
2.Lighting mode use intelligence radar senor,sensor long distance.
3.140° view angle,lighting more area.
4..Easy to install,maintance,Auto on/off

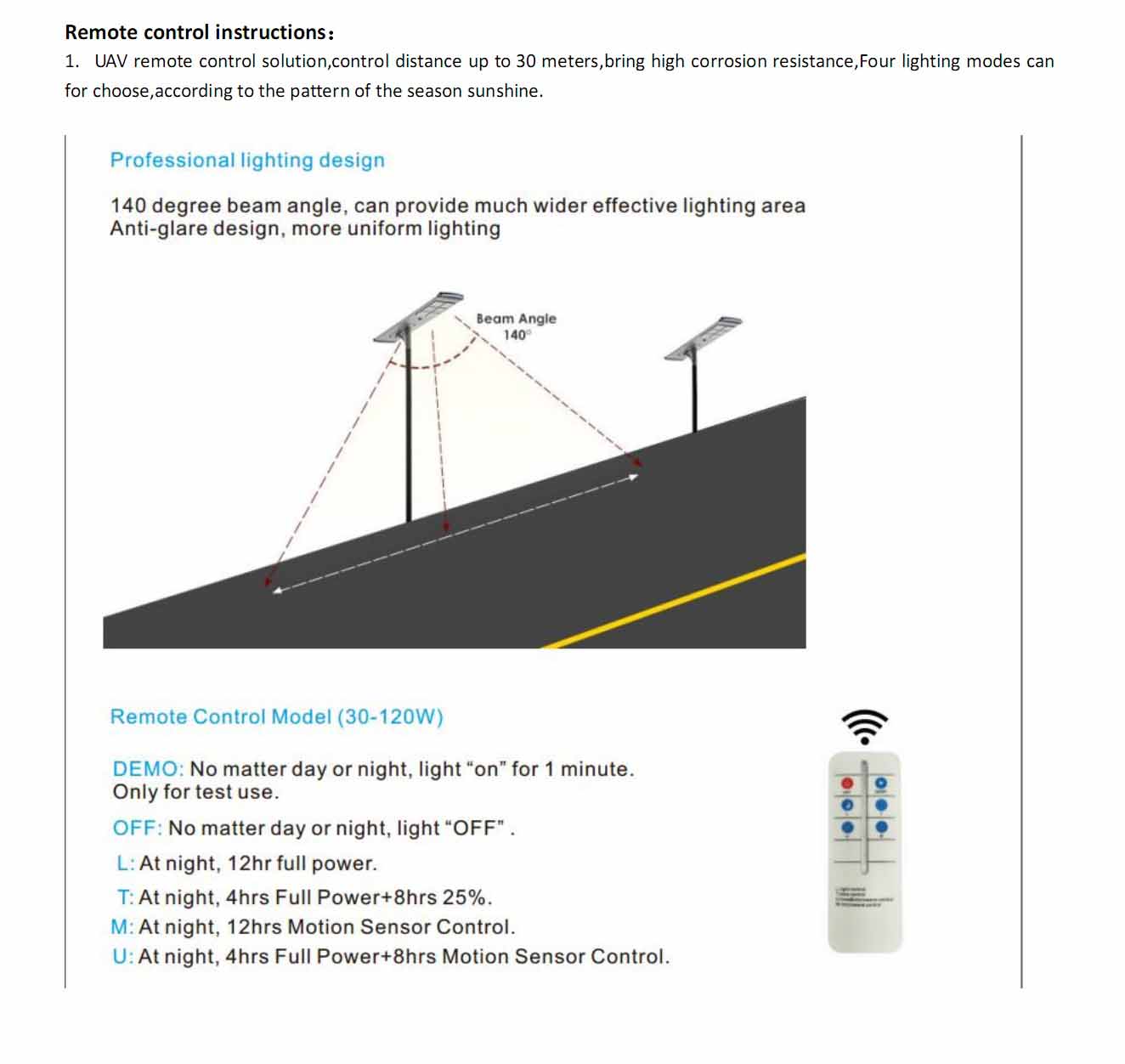

5.With remote control，UVA technology，bring high corrosion resistance，30m remote control operation，4 lighting mode.
IM-P Series （30W~120W）
|
Model |
IMP-30W |
IMP-40W |
|
LED |
30WBridgelux chips3030（Life time 100000hours） |
40WBridgelux chips3030（Life time 100000hours） |
|
Lumen(LM) |
170LM/W |
170LM/W |
|
Colour Tempreture |
6000K ~6500K（3000K-7000K can customize） |
6000K ~6500K（it can be customized） |
|
LifePO4 Battery |
300WH 12.8V |
310WH 12.8V |
|
Solar Panel |
18V50W Imported High Efficiency Monocrystalline Silicon |
18V65WImported High Efficiency Monocrystalline Silicon |
|
Install Pole diameter |
60-65mm |
60-65mm |
|
Mounting Height |
6~7m （Suggest install between space20-25m） |
7~8m （Suggest install between space25-30m） |
|
Solar Charging Time |
6 hours by bright sunlight |
6 hours by bright sunlight |
|
Cloudy/Rainy days |
12 Cloudy/Rainy days |
|
|
Material |
High Class Aluminum（anodic oxidation treatment） |
High Class Aluminum（anodic oxidation treatment） |
|
Product Size |
820*385*180mm |
960*385*180mm |
|
LED Lamp |
80PCS |
80PCS |
|
Motion sensor |
Yes（Microwave Sensor） |
|
|
Remote Control |
Yes（1pc remote control per lot） |
|
|
Waterproof |
IP65 |
|
|
Working Tempreture |
-25℃ to 65℃ |
|
|
Certificates |
CE、ROHS、IP65 |
|
|
Warranty |
3Years |
|
|
Model |
IMP-50W |
IMP-60W |
|
LED |
50WBridgelux chips3030（Life time 100000hours） |
60WBridgelux chips3030（Life time 100000hours） |
|
Lumen(LM) |
170LM/W |
170LM/W |
|
Colour Tempreture |
6000K ~6500K（it can be customized） |
6000K ~6500K（it can be customized） |
|
LifePO4 Battery |
400WH 12.8V |
460WH 12.8V |
|
Solar Panel |
18V70WImported High Efficiency Monocrystalline Silicon |
18V80WImported High Efficiency Monocrystalline Silicon |
|
Install Pole diameter |
60-65mm |
60-65mm |
|
Mounting Height |
7~9m （Suggest install between space20-30m） |
7~9m （Suggest install between space20-30m） |
|
Solar Charging Time |
6 hours by bright sunlight |
6 hours by bright sunlight |
|
Cloudy/Rainy days |
12 Cloudy/Rainy days |
|
|
Material |
High Class Aluminum（anodic oxidation treatment） |
High Class Aluminum（anodic oxidation treatment） |
|
Product Size |
1190*385*180mm |
1190*385*180mm |
|
LED Lamp |
160PCS |
160PCS |
|
Motion sensor |
Yes（Microwave Sensor） |
|
|
Remote Control |
Yes（1pc remote control per lot） |
|
|
Waterproof |
IP65 |
|
|
Working Tempreture |
-25℃ to 65℃ |
|
|
Certificates |
CE、ROHS、IP65 |
|
|
Warranty |
3Years |
|
|
Model |
IMP-80W |
IMP-100W |
|
LED |
80WBridgelux chips3030（Life time 100000hours） |
100WBridgelux chips3030（Life time 100000hours） |
|
Lumen(LM) |
170LM/W |
170LM/W |
|
Colour Tempreture |
6000K ~6500K（it can be customized） |
6000K ~6500K（it can be customized） |
|
LifePO4 Battery |
630WH 12.8V |
700WH 12.8V |
|
Solar Panel |
18V100WImported High Efficiency Monocrystalline Silicon |
18V130WImported High Efficiency Monocrystalline Silicon |
|
Install Pole diameter |
60-65mm |
60-65mm |
|
Mounting Height |
8~10m （Suggest install between space25-35m） |
9~12m （Suggest install between space30-40m） |
|
Solar Charging Time |
6 hours by bright sunlight |
|
|
Cloudy/Rainy days |
12 Cloudy/Rainy days |
|
|
Material |
High Class Aluminum（anodic oxidation treatment） |
High Class Aluminum（anodic oxidation treatment） |
|
Product Size |
1630*385*55mm（LED lamp）585*125*320m（Brackets） |
1950*385*55mm（LED lamp）585*125*320m（Brackets） |
|
LED Lamp |
160PCS |
240PCS |
|
Motion sensor |
Yes（Microwave Sensor） |
|
|
Remote Control |
Yes（1pc remote control per lot） |
|
|
Waterproof |
IP65 |
|
|
Working Tempreture |
-25℃ to 65℃ |
|
|
Certificates |
CE、ROHS、IP65 |
|
|
Warranty |
3Years |
|
|
Model |
IMP-120W |
|
|
LED |
120WBridgelux chips3030（Life time 100000hours） |
|
|
Lumen(LM) |
170LM/W |
|
|
Colour Tempreture |
6000K ~6500K（it can be customized） |
|
|
LifePO4 Battery |
800WH 12.8V |
|
|
Solar Panel |
18V140WImported High Efficiency Monocrystalline Silicon |
|
|
Install Pole diameter |
60-65mm |
|
|
Mounting Height |
9~12m （Suggest install between space30-40m） |
|
|
Solar Charging Time |
6 hours by bright sunlight |
|
|
Cloudy/Rainy days |
12 Cloudy/Rainy days |
|
|
Material |
High Class Aluminum（anodic oxidation treatment） |
|
|
Product Size |
1950*385*55mm（LED lamp）585*125*320m（Brackets） |
|
|
LED Lamp |
240PCS |
|
|
Motion sensor |
Yes（Microwave Sensor） |
|
|
Remote Control |
Yes（1pc remote control per lot） |
|
|
Waterproof |
IP65 |
|
|
Working Tempreture |
-25℃ to 65℃ |
|
|
Certificates |
CE、ROHS、IP65 |
|
|
Warranty |
3Years |
|
* If it is stored for a long time, the product should be recharged once every 3 months to avoid damage to the lithium battery. Please only use the special charger (purchased from manufacturer) to avoid damage to the battery or device.
