- SNMP communication unit
SNMP communication unit has built-in web and SNMP management capabilities.
You can view systemstatus and set system configuration data either with internet explorer or MIB browser.
Features:
Monitor system data and configure system remotely by network
Web management with built-in authentication. User name and passwords can be changed by user
Support SNMP V1, V2C, V3
10M/100M based Ethernet interface
Flexible network deployment
1,Specification parameters
Storage temperature: -55 ℃ ~ +80 ℃
Operating temperature: -40 ℃ ~ +70 ℃
Relative humidity: ≤ 95%, no condensation
Rated input voltage: 4.5V + ~ + 12.5V
Power consumption: ≤ 1W
2, Interface definition (also compatible with 485/232 / TTL interface) and power board interface, XH 5PIN socket:
1 - VCC + 4.5 ~ + 12.5V DC voltage input
2 - GND Power Ground
3 - TXA Serial Output TX (Corresponds to TTL or RS232) or A (Corresponds to RS485)
4 - RXB serial input RX (corresponding to TTL or RS232) or B (corresponding to RS485)
5 - GND signal ground
3, The protocol parameters:
Support SnmpV1, V2C, V3;
Modbus protocol supported
Embedded Web Server
Support user name and password authentication
10M / 100M Ethernet interface

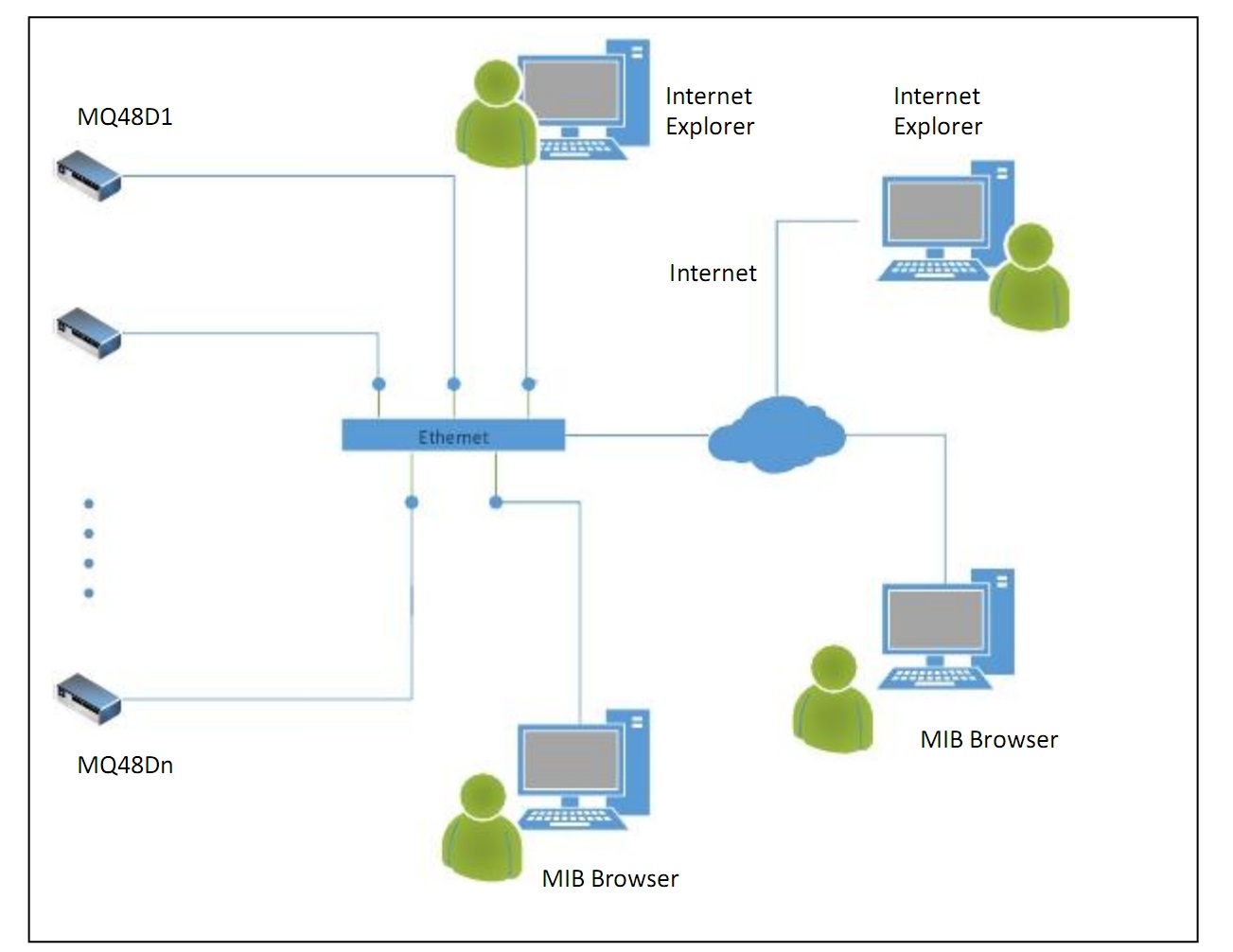

SNMP management deployment diagram
