- R48 series rectifier
- R48-E series rectifier Efficiency: >92％
- R48-H series rectifier Efficiency: >96％ Peak
-
Output power: 1200W、2000W、3000W(176~300VAC)
- Input voltage range: 85~300VAC
- Operating temperature range: -40℃~80℃
- Total harmonic distortion(THD): ≤5％
- Hot swap
- Digital control mode
- Supports CAN communication
- LED display
- Adjustment of voltage and current
- Meet RoHS requirements

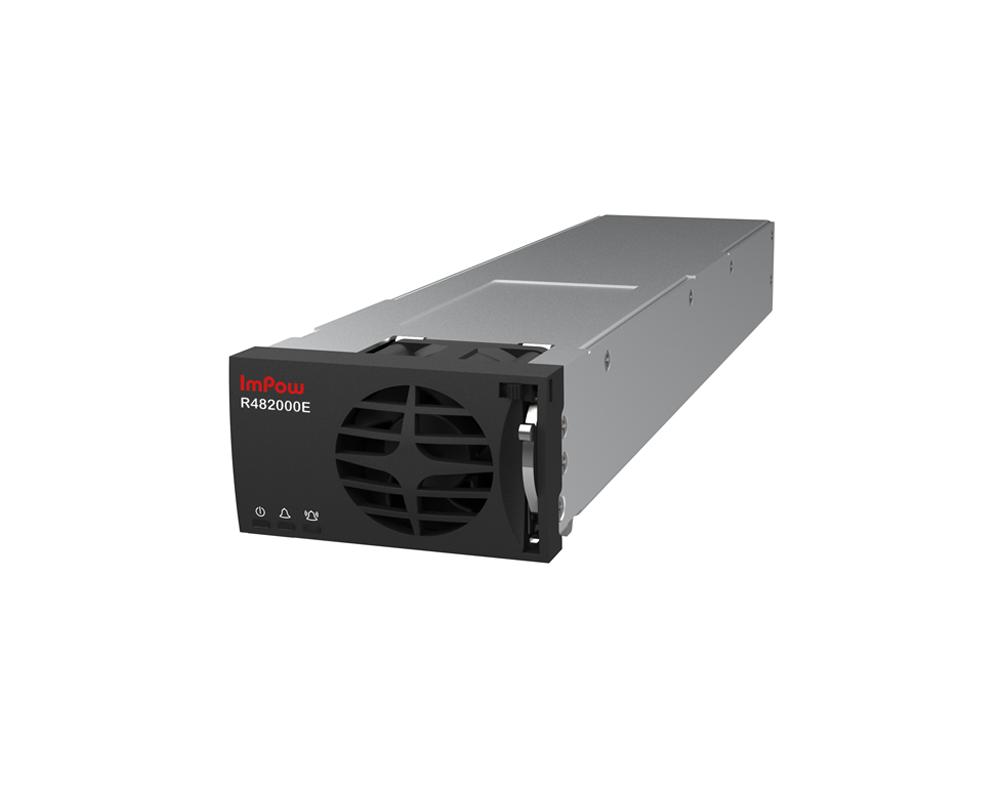

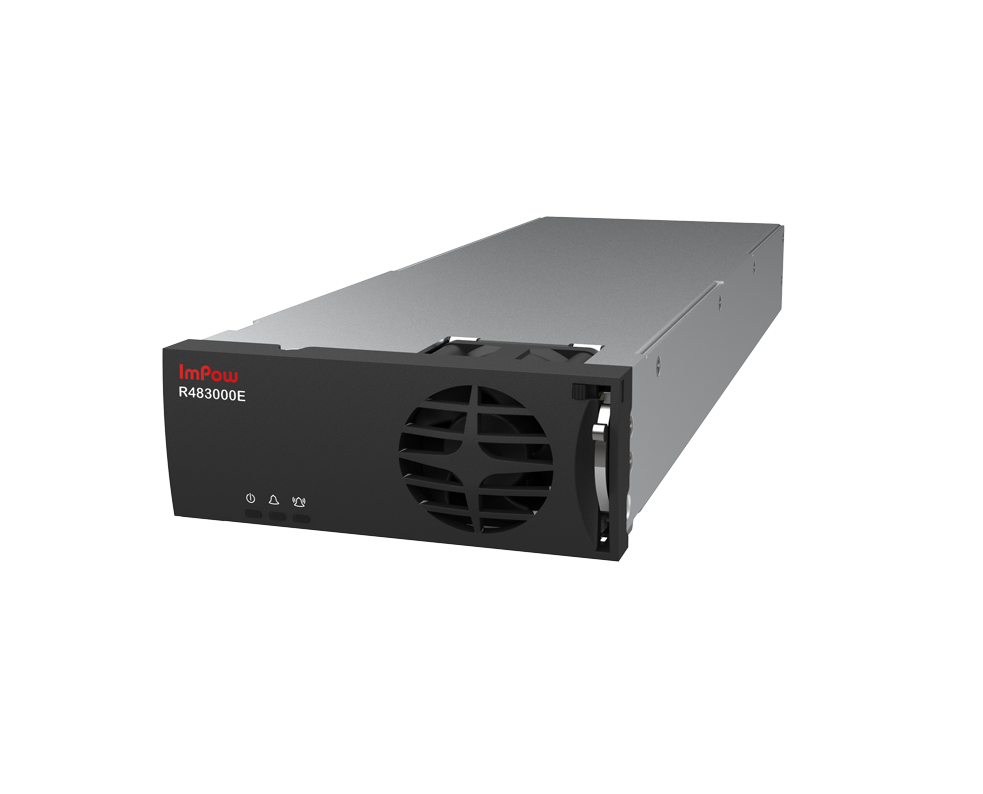

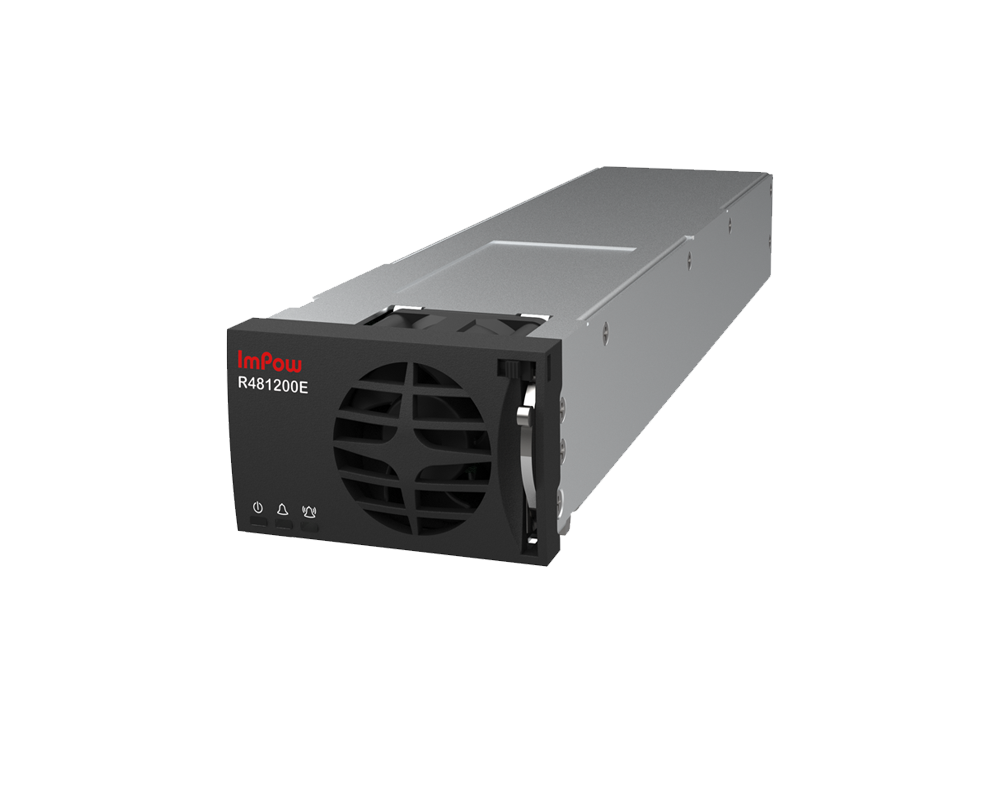

The R48-E series is a digital rectifier with general efficiency and power density. It converts 85–300 V AC
input voltage to 53.5VDC output voltage. The output voltage can be adjusted by the host. It
performs comprehensive protection functions,supports soft start, and produces low noise. With
the latest power monitoring technology, states of the rectifier and load are monitored in real time.
Multiple rectifiers can be paralleled
