- Cabinet Heat Exchanger
- Wide applications
- High cleanness . The isolated circulation of indoor & outdoor air will not introduce outdoor dust or humid air into the room to ensure the cleanness.
- Simple maintenance.
- Excellent energy saving effect. Taking full use of natural cold source to reduce internal temperature of the data center.
- With various patent technology. Alloy aluminum foil is used for the heat core, providing low heat resistance.
- To the benefit of heat transfer. Indoor and outdoor air exchange heat isolated .
- Remote monitoring can be realized. RS232/RS485 telecom port and dry contact alarm port are provided.

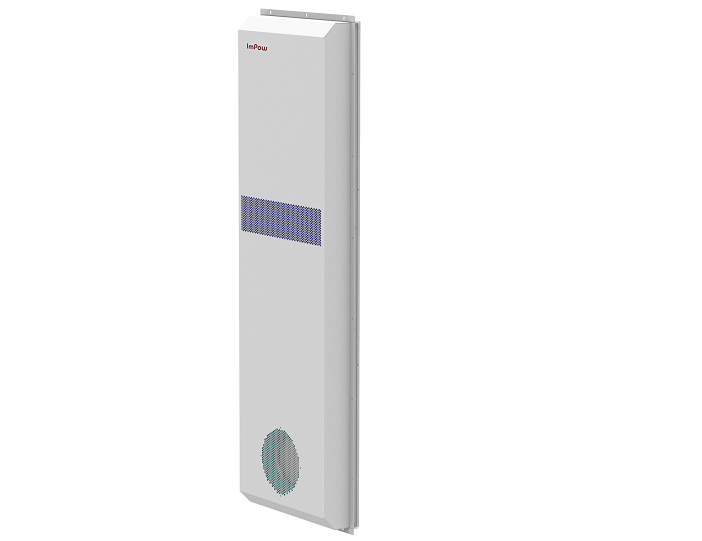

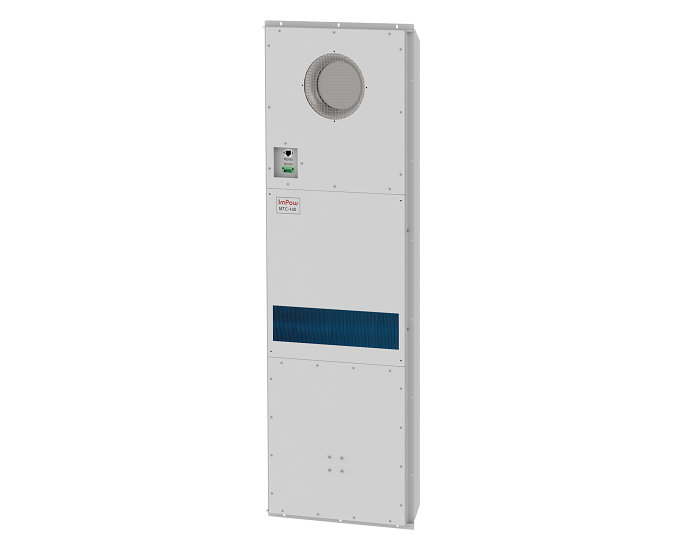

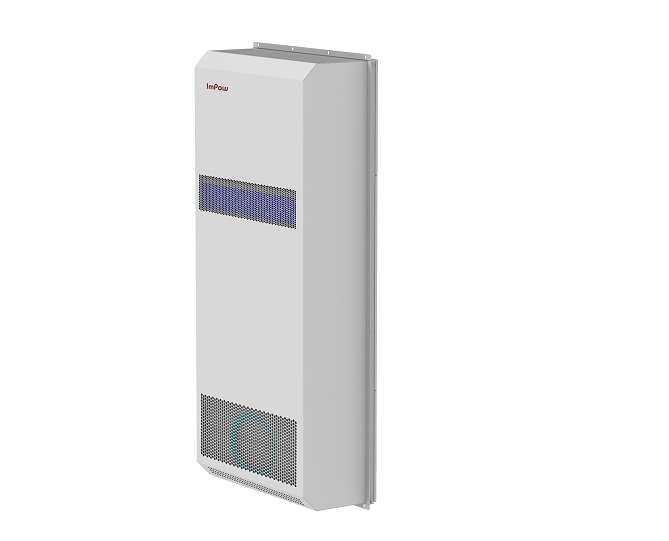

- MTC Series Cabinet Heat Exchanger
The MTC Series cabinet heat exchanger is applied to mobile Mini telecom base station, it makes full use of the natural cold source of the temperature difference inside & outside of the base station, in the condition of complete isolation of indoor & outdoor air, with the combined technology of high efficient fan and isolated reversed airflow heat exchange, realize the optimum match of high efficient fan and heat exchange core, provides heat exchange of air inside & outside of the data center decreasing and controlling ambient temperature, Compared with temperature decreasing only by air-conditioner, if using super high efficient intelligent heat exchanger , it can greatly save energy and do not pollute the air, with simple and convenient maintenance. it has high cost performance with obvious energy-saving effects. it can keep the air clean and dry within the base station and prevent the invasion of outdoor dust or high humid air, without need of water source, and avoid the hidden danger of water invasion of data center, reinforce the operation safety of telecom equipment within the data center.
|
|
|
|
|
|
|
|
Product Model |
|
|
|
|
|
|
parameter |
Unit |
MTC-060 |
MTC-080 |
MTC-100 |
MTC-120 |
|
Cooling capacity |
W/K |
60 |
80 |
100 |
120 |
|
Air Volume |
M3/h |
300 |
400 |
500 |
600 |
|
Voltage |
V |
-48 VDC |
|||
|
Power |
W DC:48V |
75 |
115 |
157 |
220 |
|
Dimensions |
mm |
1000×380×138 |
1050×435×158 |
1200×440×188 |
1350×480×218 |
|
Installation type |
|
Door embed mounting |
|||
|
HEX Body Material |
|
Aluminum foil |
|||
|
Painting-Appearance |
|
RAL 7035 powder painting |
|||
|
Control Mode |
V |
0-10Vdc |
|||
|
Alarm connector |
|
RJ45 |
|||
|
Monitoring port |
|
RS485/232 |
|||
|
Temp.Range |
℃ |
-40to70℃ 0-100%RH |
|||
|
Protection grade |
IP |
IP65 |
|||
|
Weight |
Kg |
22 |
26 |
31 |
38 |
|
|
|
|
|
|
|
|
Product Model |
|
|
|
|
|
|
parameter |
Unit |
MTC-145 |
MTC-150 |
MTC-180 |
MTC-200 |
|
Cooling capacity |
W/K |
145 |
150 |
180 |
200 |
|
Air Volume |
M3/h |
800 |
750 |
900 |
1000 |
|
Voltage |
V |
-48 VDC |
|||
|
Power |
W DC:48V |
320 |
220 |
240 |
297 |
|
Dimensions |
mm |
1540×450×130 |
1350×520×228 |
1420×520×258 |
1452×532×258 |
|
Installation type |
|
Door embed mounting |
|||
|
HEX Body Material |
|
Aluminum foil |
|||
|
Painting-Appearance |
|
RAL 7035 powder painting |
|||
|
Control Mode |
V |
0-10Vdc |
|||
|
Alarm connector |
|
RJ45 |
|||
|
Monitoring port |
|
RS485/232 |
|||
|
Temp.Range |
℃ |
-40to70℃ 0-100%RH |
|||
|
Protection grade |
IP |
IP65 |
|||
|
Weight |
Kg |
29 |
43 |
48 |
51 |
-
